Behind the Scenes of Creating Hockey’s Fiery Wolf Heads

3D Printing Breathes Life into Iconic Wolf Heads for Brûleurs de Loups‘ Thrilling Arena Experience

At Art Nzo, we recently had the pleasure of working on an exciting project for the Brûleurs de Loups de Grenoble, a renowned ice hockey team celebrated for its passionate fanbase. In collaboration with FX³, we created two large wolf head sculptures that have become a dramatic addition to the arena, thrilling fans with their intense presence.

These sculptures are designed to enhance the immersive experience for spectators, embodying the fierce spirit of the Brûleurs de Loups. The team’s vision was to elevate the atmosphere in the venue, creating a powerful visual that would energize both the crowd and players. The wolf heads add a dynamic element to the arena, particularly during player introductions and key moments in the game. As a central piece of the team’s presentation, the sculptures play a pivotal role in bringing the excitement of the game to life for fans, immersing them in the action and heightening the overall intensity of the live hockey experience.

Using advanced 3D printing techniques, we were able to bring the Brûleurs de Loups’ vision to life with precision and impact.

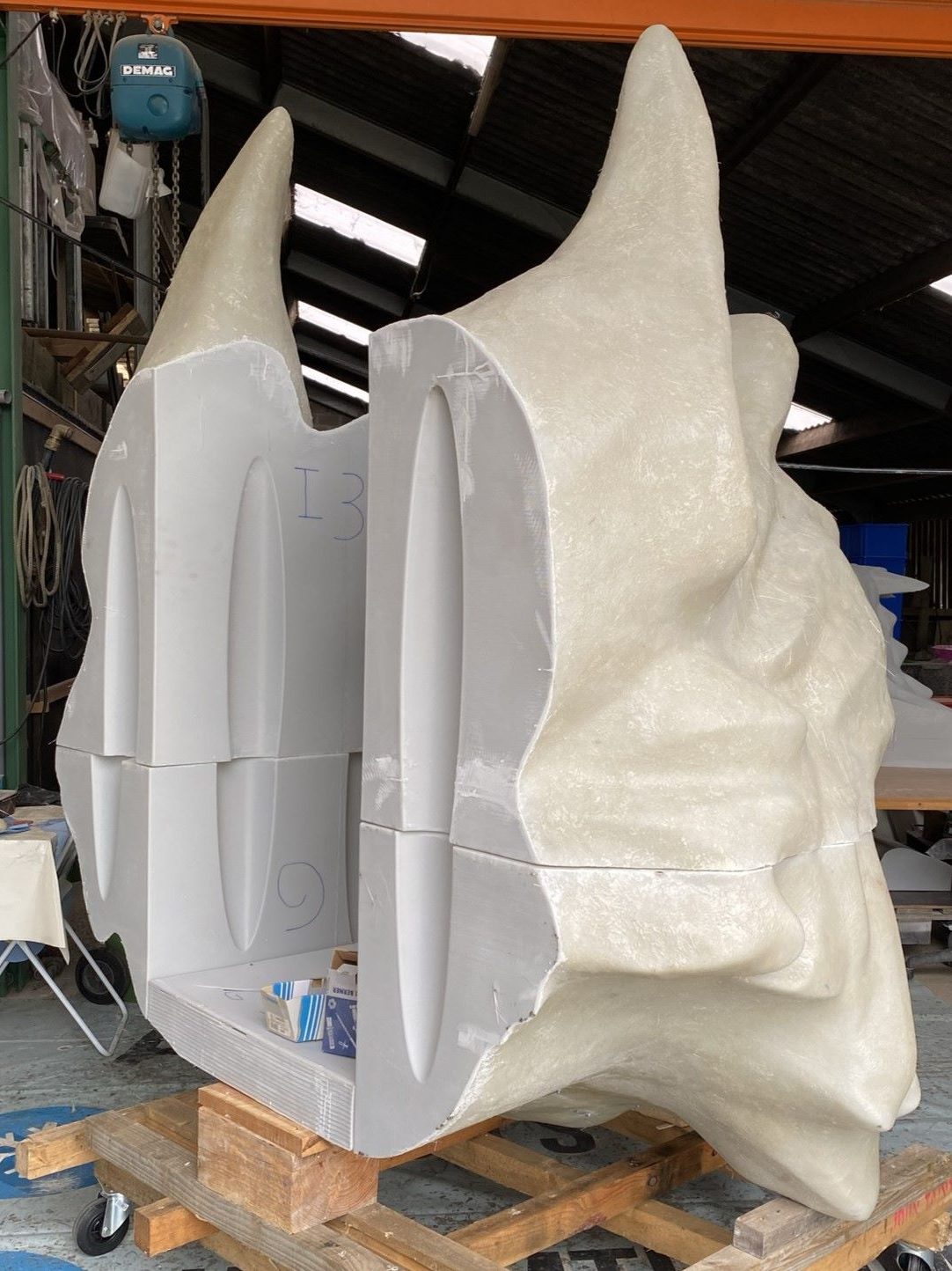

Wolf head sculptures in their primer phase, ready for painting by FX³ for Les Brûleurs de Loupes ice hockey arena installation in Grenoble

Fireproof & Lightweight: The Benefits of Our GDP Technique

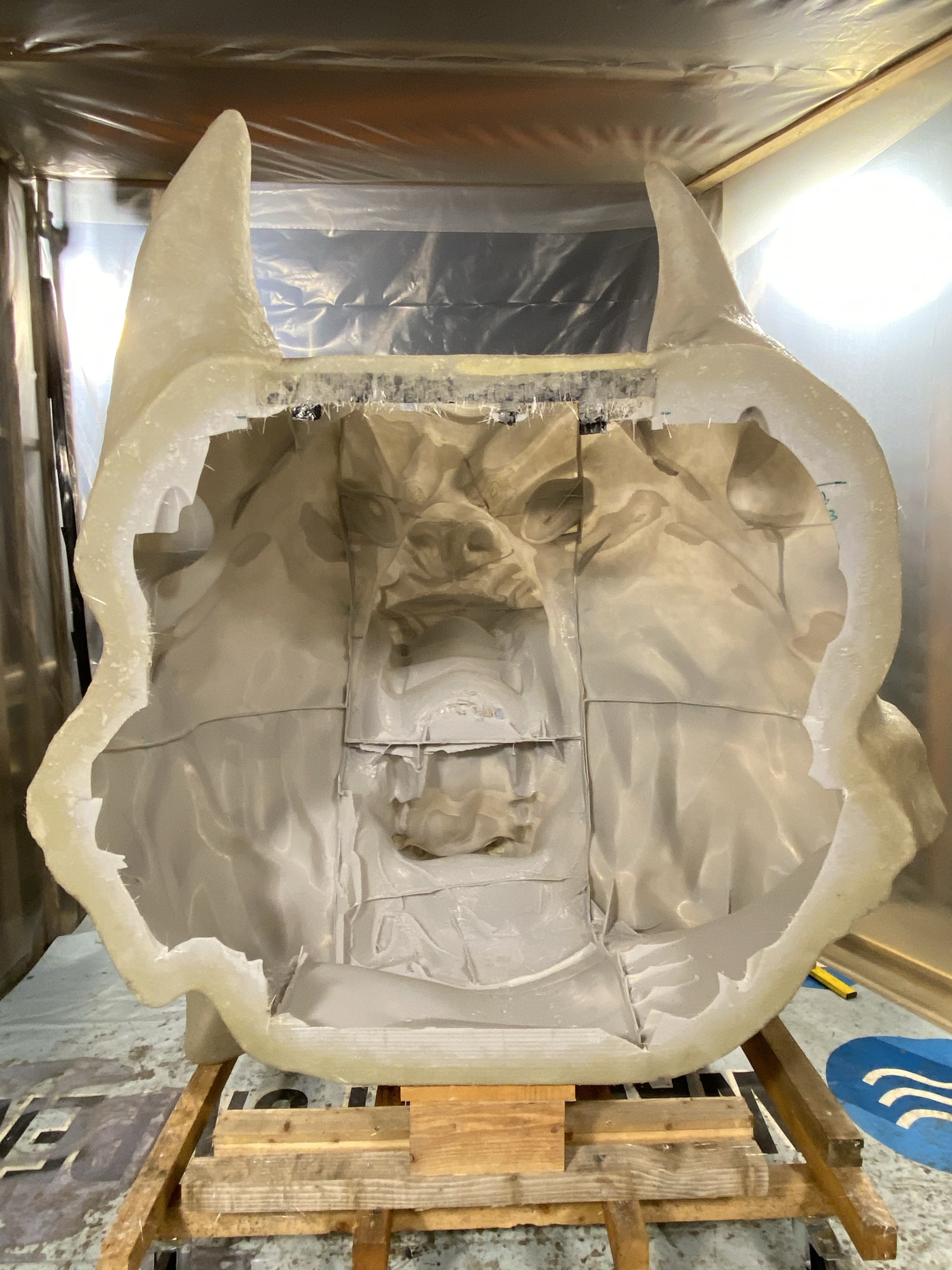

When FX³ approached us with the idea, our role was clearly defined: manage the 3D printing, assembly, and initial finishing of the wolf head sculptures. We faced the challenge of producing structures that were both fireproof and lightweight. Since these sculptures would be mounted on an existing framework, there were strict weight limitations. Our GDP technique allowed us to print only the outer shell, which was then reinforced with fire-retardant fiberglass for added durability. This approach not only reduced overall weight but also minimized material waste compared to traditional CNC foam cutting. With GDP, we optimize both sustainability and efficiency, ensuring the final product is sturdy yet meets the necessary weight requirements.

Structural Reinforcement and Fire Testing

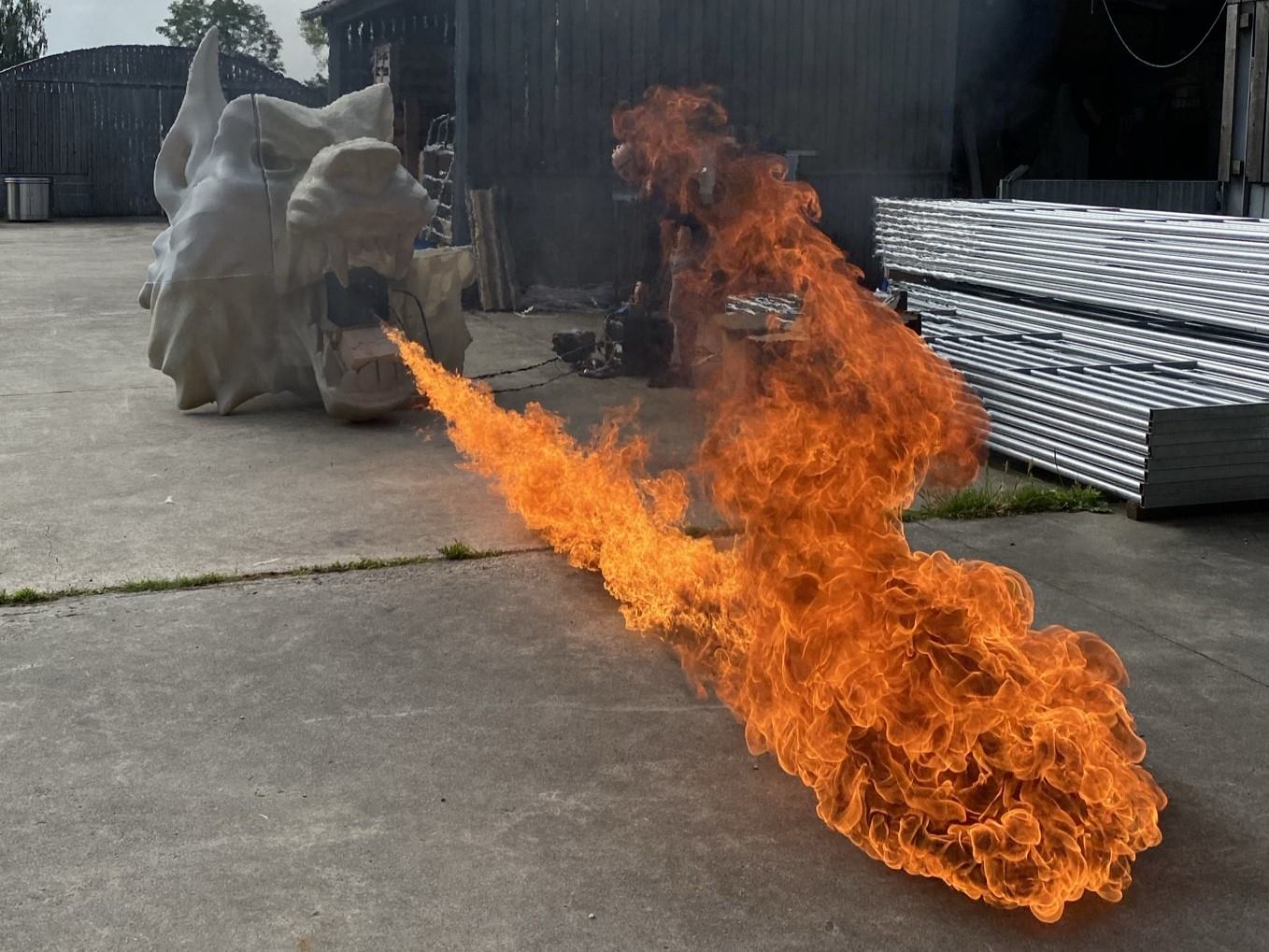

After the 3D printing phase, each segment of the wolf head was meticulously coated with a fiberglas resin to reinforce the 3D print and a fire-retardant layer to ensure it could handle the intensity of live pyrotechnics. The fireproofing process added a layer of safety, critical for an installation that would endure the heat of the flames during performances. FX³ then conducted flame tests to verify the material’s resilience and fine-tune the placement of the flamethrowers. The wolf heads passed these rigorous tests, proving both their durability and their readiness for the thrilling displays that awaited.

Bringing the Wolves to Life

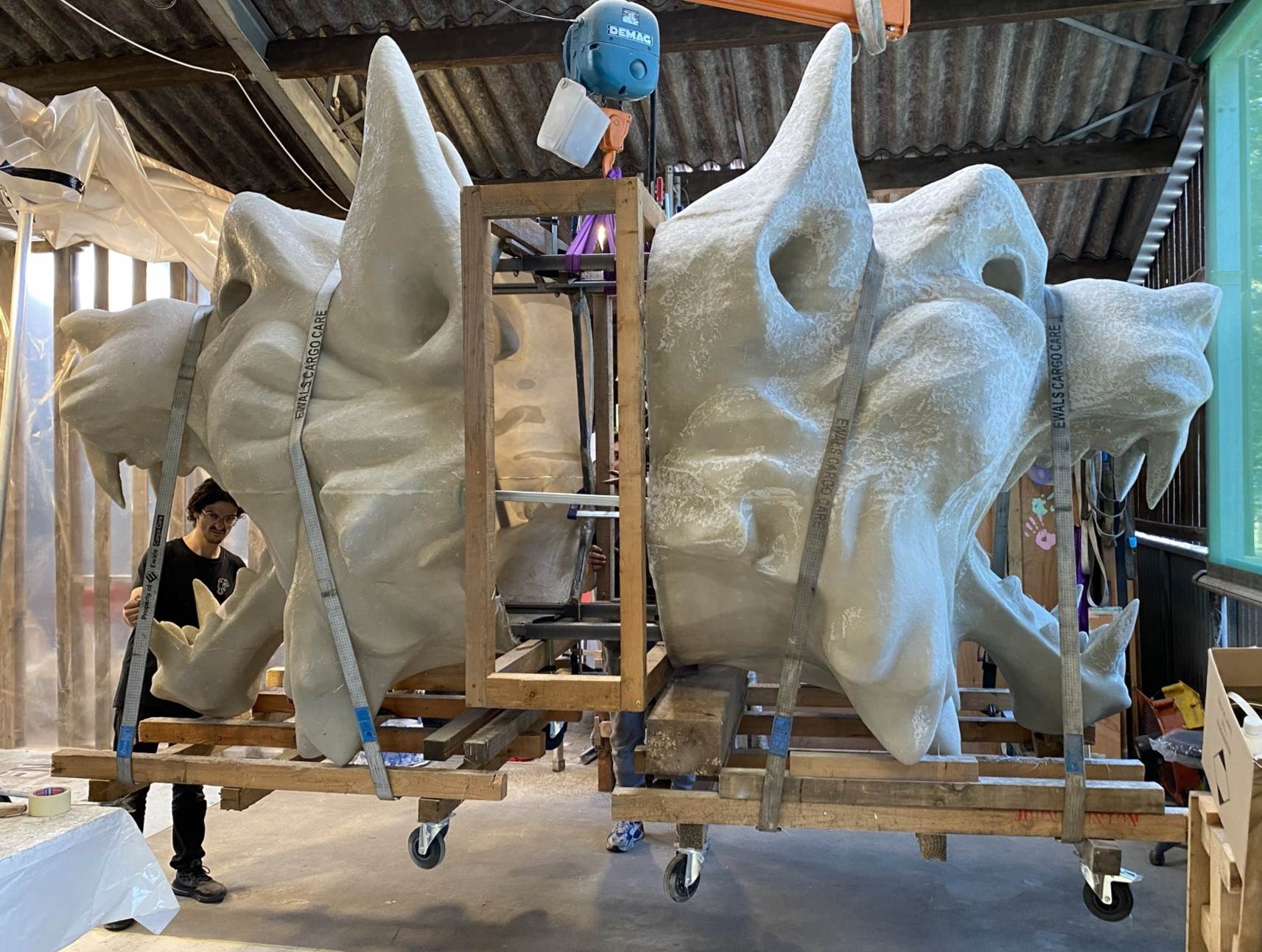

The final step in our workshop was applying a primer layer to prepare the wolf heads for their vibrant paint job. Once FX³ took over, they added the finishing touches, including the spectacular paint and special effects. Mounted above the rink, the wolves were brought to life, spitting fire and emitting smoke, leaving the crowd in awe.

Using advanced 3D printing not only allowed us to build these sculptures more efficiently but also helped reduce the overall project footprint. With fewer materials, less weight, and a quicker turnaround, this method offered clear advantages over traditional techniques, making it an ideal fit for dynamic, large-scale projects like this one.

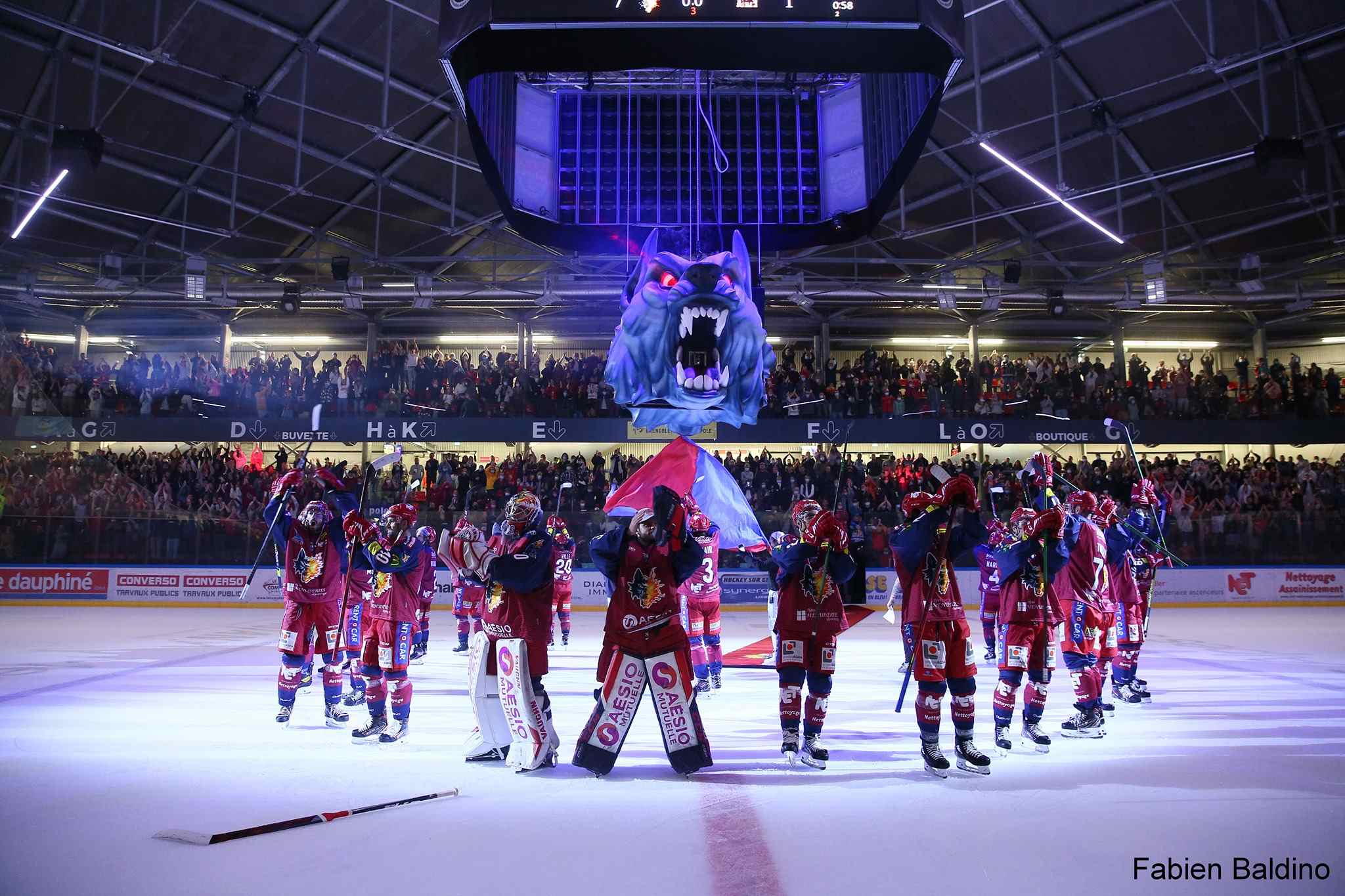

wolf sculpture suspended in ice ring with dramatic fire and laser light effects during game breaks — _{^{The final result by FX³, congratulations to the team. Pictures © by Fabien Baldino.}}

Lightweight sculptural wolf heads for Grenoble hockey team, featuring laser effects and suspended from the ceiling — _{^{The final result by FX³, congratulations to the team. Pictures © by Fabien Baldino.}}

A Successful Collaboration

We want to extend a big thank you to FX³ for trusting Art Nzo with this project. Working together on a production of this scale highlights the value of collaboration. As we continue to explore the possibilities of large-format 3D printing, projects like this show how innovation can enhance both the creation process and the final experience for audiences.
